GLAMOX H30 KDT
Instructions for choosing radiators by surface
|
WHY IT'S WORTH
- Economical, efficient heating
- Includes DT2 programmable thermostat
- Moderan dizajn
- Easy to install
- It does not burn oxygen and dust
- Protected against overheating
- Safe for children, animals
- Silent work
|

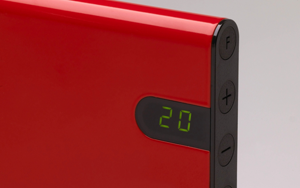

New generation of GLAMOX H30 H series heaters - contemporary, elegant, slim, line-shaped, perfectly suited to modern interiors. Different colors and heights allow them to fit a wide variety of interiors, providing comfort. Built-in digital thermostat enables room heating when needed and room temperature reduction at night and day, when you are sleeping or away from home. The thermostat maintains the precise temperature, which is an essential requirement for comfort and energy savings. The backlit LCD shows what temperature is maintained in the room.
Manual for thermostat operation
Assortment of GLAMOX H30
H30 H series, height 370 mm, power from 400 W to 2000 W, standard colors: white, red, black and silver
It is easy to mount with a detachable wall mount, does not burn dust and oxygen. Supplied with cable and plug. With fixed mounting box and 400 V only available on request. Thermostat temperature range 6 - 30 ? C.
5 year warranty.
The GLAMOX H30 comes with a programmable digital thermostat. For wall mounting use special wall mounts (comes with radiator). Can be fixed to the floor (floor units are ordered separately).
Models with terminal box for permanent installation wires and 400 V are supplied under special requirements.
TECHNICAL INFORMATION
Manufacturer
Brand
Model
Power, W
Voltage, V
Degree of protection
Measurements, mm
Maximum temperature of touching surfaces,
Overheating protection
Thermostat selected
The thermostat is on the right side of the heater.
With cable and plug
The connection cable is located on the right side of the heater.
Length of connection cable, m
With terminal box for permanent installation wires
Color
Minimum installation distance from the top of the heater, mm
Minimum installation distance from the bottom of the heater, mm
|
ADAX
GLAMOX heters
H30 H04 H06 H08 H10 H12 H14 H20 KDT Bijela
H30 400, 600, 800, 1000, 1200, 1400, 2000W
230
IP20
370x474, 589, 704, 762, 934, 1049, 1394x90
75
Installed
separately
Yes
Yes
Yes
1,20
Yes
white, red, black and silver
150
50
|
Certificate for H30
Catalog for H30
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
