NORWAY RADIATOR THERMOSTATS
All you have to do is adjust the temperature you want.
The thermostats serve to provide maximum comfort to the users of the heating system. Proper use, adjustment and control is a prerequisite for rational energy consumption and reduced heating costs. They provide COMFORT, PRECISION, SECURITY, ECONOMICITY, DURABILITY.

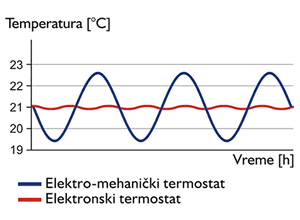

All Norwegian radiators have electronic thermostats. On the GLAMOX 3001 series it is possible to choose thermostats ET electronic or DT digital electronic thermostat. GLAMOX H30 and GLAMOX H40 and H60 WiFi models have pre-installed digital thermostats. The main advantages of electronic thermostats are: high accuracy of temperature measurement (sensitivity 0,1 ? C, regulation 0,3 ? C), quiet operation, longevity. When it comes to heating, it is essential that the temperature control be as precise as possible, which is why the Norwegian GLAMOX and ADAX radiators are more energy efficient than others. Most heaters have mechanical or electromechanical thermostats with poor sensitivity ? 0.5 ? C and control ? 1.5 ? C which increases energy consumption.

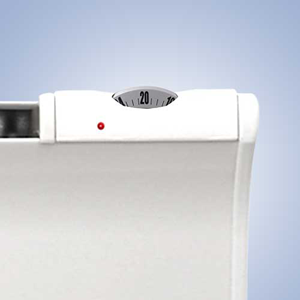

GLAMOX 3001 - ELECTRONIC THERMOSTAT ET
The GLAMOX ET electronic thermostat is 10 times more sensitive than the mechanical thermostat because it has a sensitivity of 0.1 ? C and a regulation of 0.3 ? C and are silent. For small changes in temperature, the radiator responds and lights up so that the ignition and shut-down intervals are short. In practice, this means that if you set 21 ? C to 21.1 ? C, the radiator will switch off and 20.8 ? C on.
You can adjust the temperature with the dial on the front, while the red light indicates when it is on / off.
The thermostat is factory-set so that the set temperature is in the middle of the room at 1m in height. Otherwise, the calibration itself is simple and provides instructions on how to calibrate the thermostat in your room.

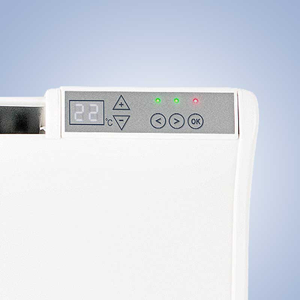

GLAMOX 3001 I GLAMOX H30 - DIGITALNI TERMOSTAT DT
With the GLAMOX DT digital thermostat, it can adapt your heating to your needs and save an additional 15% on electricity. Set up work modes when you are at home, at work or when you are sleeping.
The sensitivity is the same as with an electronic thermostat and you can use the same, that is, instead of raising and lowering the temperature for certain periods of time.
Large LCD display, programming and temperature buttons are on the front, the lights indicate which mode is on.
CONTEMPORARY AND FUNCTIONAL
GLAMOX 3001 with DT2 5.1 thermostat fully meets all the requirements of the 2018 ECO DESIGN LOT20 standard.
Use the (+) and (-) keys to easily adjust the desired temperature manually. The (>) and (<) function key allows you to select the radiator mode. There are three programs at your disposal. The P1 program gives you the ability to program your heating clock by hour according to your needs.
The P2 and P3 programs have a predefined mode of operation and are intended for offices and households. Primjenom odgovarajuceg programa lako mozete podesiti vrijeme i temperaturu grijanja svake od prostorije posebno u skladu sa namjenom. With good programming, smart start function and proper
By setting the optimum temperature, you can save up to 50% of electricity over unregulated systems.
Protection against unauthorized use by children and others
is a standard feature.
Programmable thermostat with three programming modes
The P1 program gives you the ability to program the radiator mode yourself according to your needs.
The P2 program is intended for offices and other office buildings.
The P3 program is designed for home use with all periods higher and lower
temperatures 5 and 7 days a week, respectively.

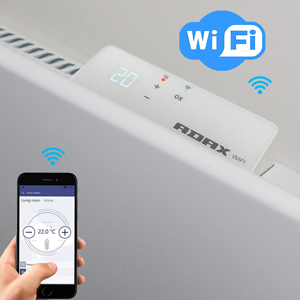

ADAX NEO AND GLAMOX H40 - WiFi THERMOSTAT
Glamox H40 WiFi provides continuous control of your radiator wherever you are. Information about the current room temperature is constantly displayed on your smartphone screen. You can program the operation of your smart radiator every day individually or according to your rhythm of life. If necessary, you can change the desired temperature in your room at any time on your mobile phone or radiator. Until now, every ventilation of the room and the opening of the window caused the space to cool rapidly and to consume the maximum amount of energy to compensate for the heat during the ventilation.. Glamox H40 WiFi thermostat has a built-in open window function, when you open the window the radiator detects it and does not turn on until the temperature in the room has stabilized.
Use the (+) and (-) buttons on the radiator to easily adjust the desired temperature. Via smartphone and Android and iOS mobile apps
phones control and program your radiators. With the mobile app, you can control multiple radiators in multiple locations. From one application you can control the simultaneous heating in your apartment or home and in the cottage. All you need is an internet connection.
Weekly programming with three independent programming modes, an adaptive start according to the set program time and an open window function as well as a remote control function ensure full compatibility of this thermostat with ECO DESIGN EU standards.
WEEKLY PROGRAMMING
We always say that the most important function of saving energy is Sunday programming. Basically, weekly programming allows you to schedule when the heater will switch on or off or adjust the temperature according to your living needs.
Ideally, the heater only works as long as it takes for you to have maximum heating comfort.
Good programming avoids unnecessary waste of energy when you do not need it, thus reducing greenhouse gas emissions and saving your pocket.
ADAPTIVE ECO START
Adaptive Start is a program that predicts when it is optimal to switch on heating to reach the desired temperature at a specific time. Based on previously memorized parameters, the heating element determines the optimum time to start heating. Based on previously memorized parameters, the heating element determines the optimum time to start heating. Then leave the heater alone to do the rest. The adaptive start process is an interactive process of the heater and space and the heater, based on the previous parameters, corrects when necessary and as required.
OPEN WINDOW DETECTION
Or protection against unnecessary work. Meaning that the heater can recognize when is the window / door open. Most often, an open window or door is detected performs by comparing temperature. If there is a sudden loss of temperature in the room, the device thinks that someone has intentionally or unintentionally opened the window and lowered the temperature most often to the freeze protection temperature.
When the room temperature stabilizes, the system returns to the standard heating parameters. Turning off or lowering the temperature prevents energy from wasting unnecessarily through an open window.

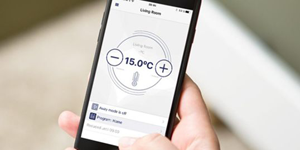

REMOTE CONTROL
Remote control allows you to control the operation of the heater even when in space. ADAX WiFi devices connect to a local WiFi network, and you can control your heating systems online no matter where you are. Remote control also allows you to program on a weekly basis, with the possibility of not only repeating programs on a predefined schedule, but also optimizing your heating cycle on a daily basis in accordance with the changing life cycle.
LOT20 ECO DESIGN STANDARDS EU
The LOT20 rules for heaters apply from January 1, 2018. It is an EU directive aimed at making heating products more efficient, in order to contribute to efforts to reduce CO2 emissions of carbon dioxide. Many existing non-standard products will no longer be available on the EU market.
In 2009, the European Parliament established the indicative guidelines for a new ECO design directive. The aim of the directive was to make the devices as economical as possible in order to reduce greenhouse gas emissions. New options have been sought that will reduce the amount of energy used by the heater during its lifetime.
The new directives give the user the choice of environmentally friendly and economical heaters.
Lot 20 changes are big for the heating industry. As of January 1, 2018, non-qualifying heaters cannot be manufactured for sale in the EU. It is not allowed to deliver products that do not meet the standards and are manufactured after 01.01.2018. Products that were manufactured before 2018 can still be sold.
Scope
The new directive applies to:
"domestic heating units with a rated thermal output of 50 kW or less and commercial heating units with a rated thermal output of products or individual segments of 120 kW or less".
What it means?
The beginning of 2018 marked a turning point in electric heating.
Suddenly, previously unknown functions, they must become a mandatory part of the characteristics of the heating elements.
Functions such as "adaptive start" had technical names but did not apply, when entering EU rules manufacturers had to develop them for market needs and incorporate them into their products. Without weekly programming, open window detection and adaptive start from 01.01.2018. it is not possible to produce and sell heating appliances in the EUe.
ADAX adapted its radiators to EU standards and provided additional energy savings and reduced greenhouse gas effects.
How to optimally program a thermostat
The digital thermostat should be programmed to its maximum use
the correct way of using Norwegian radiators, more precisely it will instead use you Norwegian radiator in the best possible and most economical way.
|
|
|
|
|
|
|
|
|
|
|
