ADAX ECO BASIC - BATHROOM MODELS IP24



  • Instructions for choosing radiators by surface
  • Installation instructions
  • WHY IT'S WORTH
    • Easily adjustable electronic thermostat
    • Overheat protection - The circuit breaker cuts off if the internal heater temperature is too high
    • Spray Resistant (IP24) - The heater is approved for use in bathrooms if installed by a certified electrician
    • Double insulated (Class II) - does not require grounding
    • Length of cable 1,3 m
    • small size
    • lightweight
    • economical
    • low heater temperature
    • 5 year warranty

    Minimalist and economical small space heaters. Reliable thermostat operation and precise regulation make the Eco Basic panels ideal for your home and your holiday home.

    A Norwegian radiator can be a basic heater in your bathroom or as a complement to your central heating system, so that you do not have to switch on the complete central heating system especially during transitional periods. The principle of operation is the natural circulation of air where cold air enters through the lower opening, heats up on a specially designed heater and exits the upper opening heated into your space. The heat spreads evenly throughout the bathroom. Natural air circulation and even heating throughout Spaces reduce the possibility of creating cold pockets and condensation that leads to the formation of tempest.

    When the room reaches the desired temperature, the built-in electronic thermostat periodically switches the heater on and off to maintain heat levels and to save electricity. You can also use the ADAX NEO WiFi to heat the bathroom, which allows you to check the temperature in the bathroom before you plan to use the bathroom on your phone and adjust it to the appropriate one no matter where you are.You're coming home tired and waiting for a warm bath!

    1.ADAX ECO 04 (400W) l = 475 mm
    2.ADAX ECO 06 (600W) l = 560mm
    3.ADAX ECO 08 (800W) l = 674mm
    4.ADAX ECO 10 (1000W) l = 720mm

    Comparison of ADAX ECO Basic Series with GLAMOX Series
  • lower price
  • resistant to splashing water
  • robust construction
  • it can be used in bathrooms, laundries, changing rooms...
  • there is no programming option
  • no plastic parts

  • Example
    For a 4m2 bathroom with optimal insulation, it takes about 400W of power. Otherwise, for well insulated spaces, the calculation is from 80 to 120W / m2. Our radiators are from 400W to 2000W then you need to choose a radiator of 400 or 600W - which meets the needs of this bathroom. Higher radiator power in this case will not mean more consumption, but greater safety in heating at extremely low temperatures and lower consumption due to faster reaching the set temperature.
    By adjusting the radiator thermostat to a comfortable temperature of 16-20 ° C, you will maintain a comfortable temperature in the bathroom for everyday use. Only raise the temperature on the thermostat before using the bathroom for a long time (bathing, showering, shaving, etc.). This way you get the radiator running at only 20-30% of power or 0.15KW / h, which means that your daily consumption is only a few kilowatts (3-4KW / h). While your bathroom is always warm and dry.



    WHERE AND HOW TO INSTALL RADIATOR IN THE BATHROOM
    When installing radiators in bathrooms and other rooms where water is present, there are rules that must be followed. Prije instalacije neophodno je pratiti priložena uputstva i preporuke koja se odnose na instaliranje radijatora u vlažnim prostorijama.

    The radiator casing must be designed with adequate IP protection; standards are used to determine under what conditions the device may operate. Whether it can withstand water, dust or other foreign objects, IP protection consists of two numbers eg IP20 and IP24.

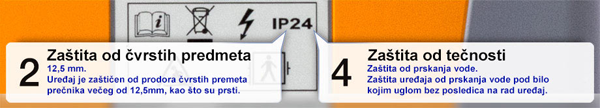

    The IP 24 mark consists of two numbers : 2 i 4
    The first figure shows the resistance to solid foreign objects (dust, flies, etc.).Number 2 specifies that the device is protected from 12mm solid objects (eg fingers)
    While the other indicates water resistance.
    Number 4 determines the degree of protection against water splashing in all directions with controlled permissible fluid entry into the unit.

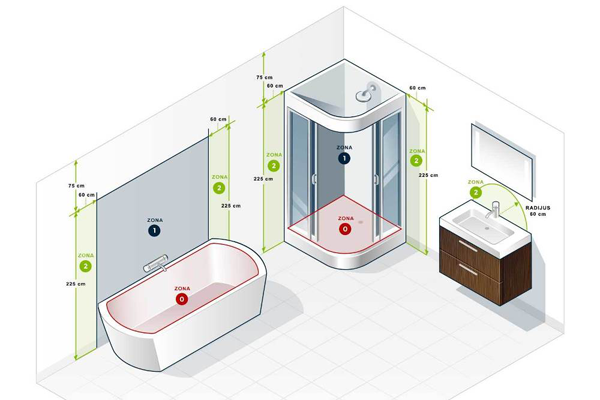

    WHAT ARE THE ZONES BATH


    To provide clear guidelines for electricians, the IEE Wiring Rule divides home baths into four zones, each with its own electrical protection requirements. It is important to note that not all bathrooms are large enough to have all these zones - and that the instructions should always be combined with a good dose of common sense. We always recommend that you check with your electrician before choosing the electrical appliance to install in your bathroom. A good electrician will not install the unit in the bathroom unless he / she thinks it is safe.

    Zone 0
    It is an area occupied by water sources such as bathing and showering. The area includes your faucets or shower and everything underneath - from shower to floor, from faucets to bathtubs. We're not sure how or why you would want to install an electric heater in this area - but if you've thought about it, don't do that. If you choose, you must limit your choice to devices with IPX7 protection or higher.

    Zone 1
    Zone 1 covers the area just above the bathroom or shower. Accurately measured, it extends vertically either to the highest fixed water outlet (i.e. to showers or bath taps) or to a height of 2.25 m - which is the highest. Practically speaking, in most bathrooms this works as a whole wall that surrounds your bathroom or shower, from floor to ceiling. If you have a shower without a shower or bath, Zone 1 extends 1.2 m away from the center of the water outlet. It is rarely practical to mount an electric heater in zone 1, but if you want, you will need a device with at least IPX4 protection. Radiators in IP 24 protection can be mounted in zones 2 and 3. Remember that the radiators must be connected to the appropriate socket or direct connection and that the installation must be performed by a qualified person.

    Zone 2
    Zone 2 in your bathroom covers all areas within 0.6 m of the zone boundary. This is an area that surrounds outside your bathroom and shower and can be a convenient place to place a radiator. Electric radiators for use in zone 2 must have a minimum IPX4 protection rating.

    Zone 3 (outside the zone)
    Zone 3 covers all areas of your bathroom that do not fall within the above zones. Many bathrooms are small enough that they do not have a zone 3 - or zone 3 is so small that it is not large enough for heating installation. Zone 3 is not a landscaped bathroom; there is no restriction on the level of electrical protection required of appliances in this area, except for the warning that all radiators must not be within reach of persons using the shower or bath. However, you should always be very careful when choosing a Zone 3 bathroom radiator. Our recommendation is that no matter what the zone 3 is, do not use protection devices less than IP24 in bathrooms.

  • ADAX ECO BASIC catalog
  • ADAX ECO BASIC certificate
